RoscoLED® Tape VariColor: RGB+W Kits

Vibrant, Versatile Lighting Solutions

Designed for the most demanding dramatic lighting applications, each RoscoLED Tape VariColor: RGB+W Kit comes with three, 5m reels of high-quality, high-output, color-mixing LED tape, and one DMX addressable RoscoLED Control Box to provide power, dimming and color control for all three reels. Each reel comes pre-configured with a multi-pin connector for easy Plug-&-Play connectivity with the RoscoLED Control Box – no soldering required.

Bold Colors And Subtle Tints

Featuring vibrant red, green and blue emitters, RoscoLED Tape VariColor products provide full-range color-mixing options. The VariColor: RGB+W Kits are available in two variants – RGB + Cool White (6000K), and RGB + Warm White (3000K) – to produce virtually any color, tint or hue your project requires. Featuring white LEDs with a CRI of 93 and a TLCI value of 92, RoscoLED Tape VariColor: RGB+W also produces clean white light with superior color rendering.

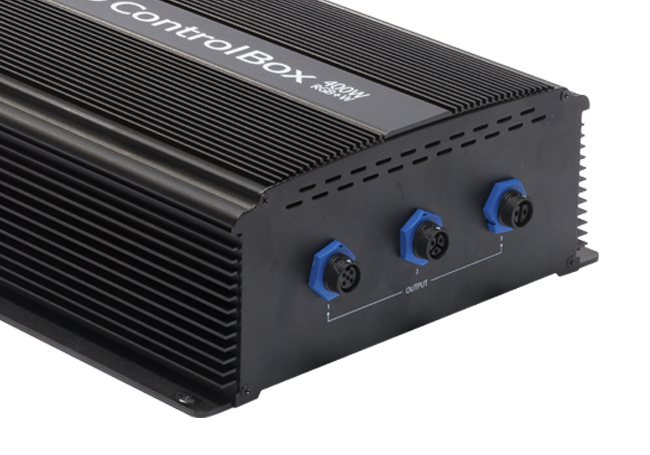

Plug-&-Play Connectivity

Each reel of RoscoLED Tape in the kit comes pre-configured with a multi-pin connector that is designed to quickly plug into our RoscoLED Control Boxes – no field-soldering required! RoscoLED Tape Kits are designed for quick and simple installation – featuring a balanced combination of 5m reels of LED tape and a matching control box for power and DMX dimming control.

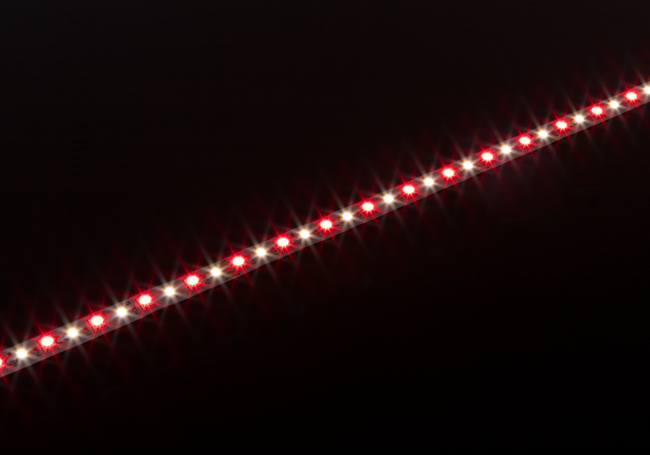

Powerful And Efficient Output

Featuring a combination of SMD5050 color emitters and SMD2835 white emitters, each reel of RoscoLED Tape - VariColor: RGB+W in the kits produces 1,440 lumens/meter. Thanks to their efficient output, reels of RoscoLED Tape – VariColor: RGB+W offer energy savings by providing an unprecedented 63 lumens/watt!

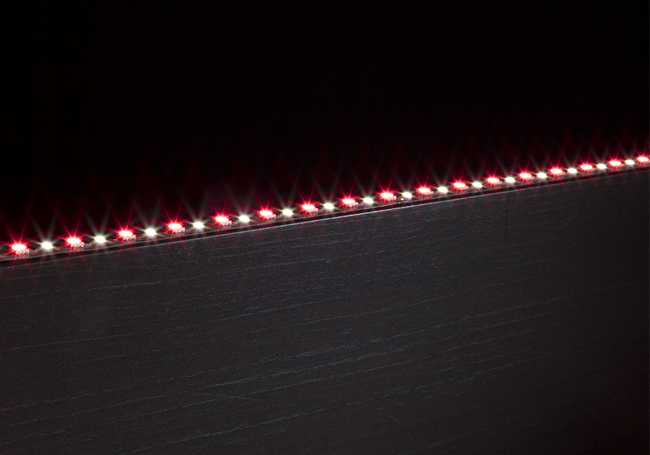

Durable, Long-Lasting Illumination

Each reel of RoscoLED Tape - VariColor: RGB+W in the kit features a robust, 2 oz. copper heat sink. The integrated copper enables efficient thermal management of the LED emitters, allowing them to run cooler and extend their lifespan. The thicker copper base also minimizes potential for damage to the electronic circuits during handling and installation.

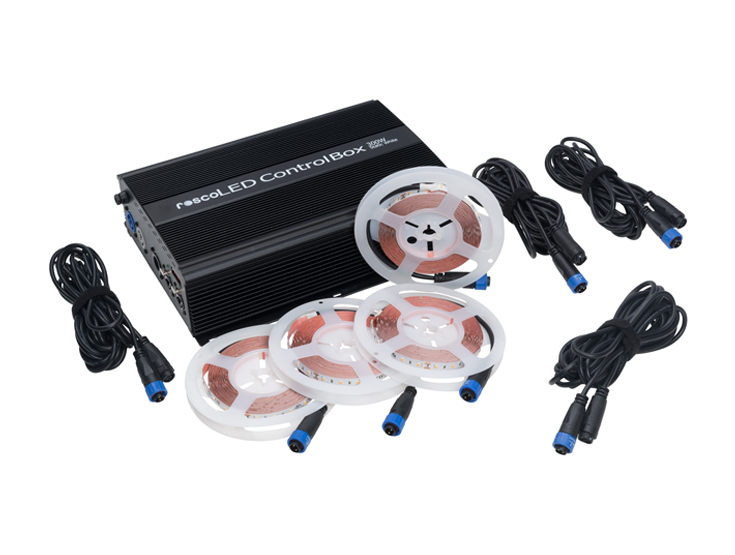

What’s In The Kit:

(3) 5m reels of RoscoLED Tape VariColor RGB+W

(1) RoscoLED VariColor Control Box/400W/24V

(3) 5m RoscoLED 5-pin VariColor Cables

(3) RoscoLED 5-Pin VariColor Female Connectors w/Pigtails, 20 cm


RoscoLED Tape VariColor: RGB+W Specifications:

LED Type: SMD5050 (RGB) / SMD2835 (White)

Number of LEDs/meter: 48 RGB + 48 White

Heat Sink: 3 oz. Copper

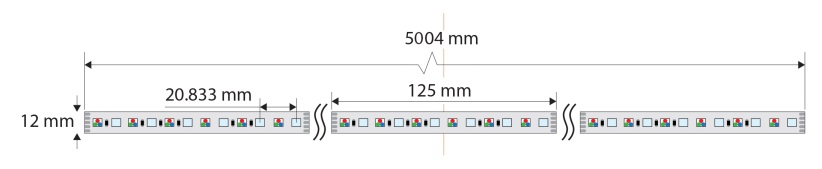

Cut Points: Every 125mm (4.92”)

cut points

White LED Color Temperature:

  • RGB+WW: 3000K
  • RGB+CW: 6000K


White LED CRI: 93

White LED TLCI: 92

Lumens/Meter: 1440

Voltage: 24VDC

Power Consumption: 23W/m or 115W/5m reel

Operating Temp:  -4° to 140° F (-20° to 60° C)

Lumen Maintenance: > 47,000 hours L70 at 105C (IESNA LM-80-08 Standard)

IP Rating:  IP43

Warranty: 3-years


  • UL Listed
  • CE Certified


UL listed

CE certified


RoscoLED VariColor Control Box Specifications:

Input Voltage: 90VAC ~ 264VAC via Neutrik Powercon connector

Output Voltage:  24VDC via three 5-pin connectors

Rated Power: 400W

DMX: 5-Pin XLR In – RJ45 In/Out

Operating Temp:  32° to 122° F (0° to +50° C)

IP Rating: IP20

Dimensions:  8.25" × 8.25" × 2.82" (210 mm × 210 mm × 72 mm)

Weight:  9.5 lb (4.3 kg)

Certifications:  ETL/cETL (UL8750, CSA 22.2 #250)

ETL certified

CE certified


Product Numbers:
293220100025   RoscoLED® VariColor Kit: RGB+CW/6000K
293220100026   RoscoLED® VariColor Kit: RGB+WW/3000K
