Miro Cube® 2 UV365

Designed by The Black Tank

The Miro Cube 2 range of LED fixtures is engineered to provide lighting designers and integrators with precision light control and tech-enabled solutions to execute their projects with accuracy and efficiency. Their sleek design is packed with state-of-the-art technology that provides maximum output and flicker-free dimming from a 4-in. (10 cm) cube-shaped LED light.

The Miro Cube 2 UV365 is a compact, high-powered, long-throw black light that features an array of UV LEDs that have been tuned to a narrow 365nm output.

The numerous features of this fixture make the Miro Cube 2 UV365 ideally suited for theme parks, night clubs, casinos, museums, theatrical stages, or any installation that needs voluminous amounts of black light – without large, bulky fixtures.

Optimal Output

The Miro Cube 2 UV365 features LEDs that have been tuned to a narrow 365nm to produce “True UV” output. Many other UV LED lights produce a 395nm output, which yields disappointing results. 365nm is the peak output for making fluorescent scenery, make-up and set materials come to life!

The 50W Miro Cube 2 UV365 produces an astounding 10,800 mW of energy. It also ships with a custom engineered, 10° Lens Optic to optimize the beam and maximize the fixture’s UV output for long throw distances. An additional 22° Lens Optic accessory is also available for projects that need a wider beam spread.

Hassle-Free Maintenance

The incredible LED lifespan of the Miro Cube 2 UV365 eliminates the regular maintenance and costly lamp changes required by traditional UV luminaires. This self-contained LED fixture doesn’t need power-hungry ballasts that overheat and fail, which means less cooling expenses and fewer components to replace.

Multiple Control Options

Miro Cube 2 UV365 fixtures can be controlled by many popular control options, including: RDM compatible DMX and 0-10VDC, or via a mobile device using the myMIX™ Connect accessory and the myMIX™ App. The fixture provides flicker-free dimming via 16kHz PWM in 8- or 16-bit resolution or via its unique NO PWM mode.

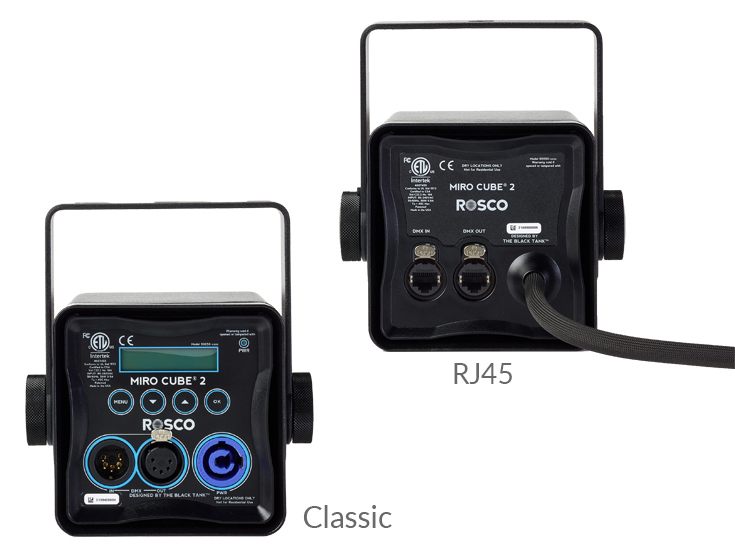

A Classic Conversion option, featuring the Powercon/XLR connectors and LCD user interface used in the original Miro Cube UV365 models, is also available.

Distinctive Design

A good lighting design doesn’t draw attention to the fixtures. It’s important, however, to have a well-designed fixture – just in case anyone ever looks up. From its rounded corners and side accent panels, to the yoke marks that enable precise focus angles – every element of the Miro Cube 2 design has been purposefully thought out. Whether they’re creating black light in a night club, a dark ride, or in a museum exhibit – the universal design of the Miro Cube 2 UV365 will feel at home in any venue.

What’s In The Box:

  • Miro Cube 2 UV365
  • 10° Lens Optic


Input Voltage:

90-240VAC 50/60H

Power Consumption:


Power Input:

Hard-wired pigtail, 6 feet/1.82 meters

Lumen Maintenance:

72,600 hours at L80 at 45ºC

Data Connector:

RJ45 In/Out Connectors

Max Output:


LED Color Specification:

Peak output @365nm


DMX RDM or 0-10V Dimmable

Operating Temp.:

-13º to 113ºF (-20º to 45º C)


0-95% non-condensing


4.3 in x 4.3 in x 4.9 in (109mm x 109mm x 125mm)


2.1 lbs (0.95 kg)


Powder coated, die-cast aluminum

IP Rating:


DMX Channels:


myMIX® Connect Compatible



Black Only


Miro Cube 2 UV365 – Classic Conversion
(Same as above, except for the following:)

What’s In The Box:

  • Miro Cube 2 UV365
  • 10° Lens Optic
  • Neutrik Powercon Cable


Power Input:

Neutrik Powercon, 6.56 feet/2 meters

Data Connector:

5-Pin XLR In/Out connectors


DMX RDM + Full Text LCD screen user-interface



Miro Cube 2 Approvals:

cETL, ETL, CE, UKCA, FCC Class A Compliant; Dry Locations
FCC Class A Radiated and Conducted (Include ETL/CE)
ETL / UL Standards 1573 and 8750
cETL / CSA C22.2 #166-M1983
CE / IP20 Rated
