Image Spot® UV

Brilliant Imaging.

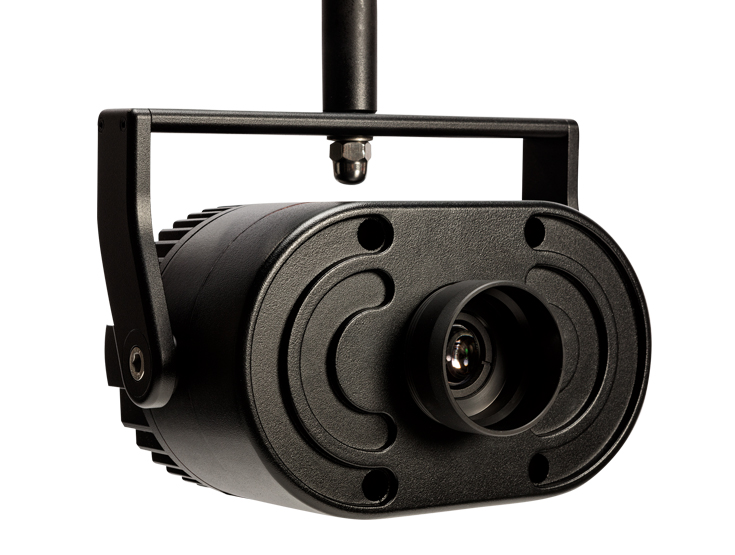

Create textured UV lighting effects with the Image Spot UV LED projector. Using a mere 45W of power, the Image Spot UV packs an amazing amount of output into a versatile and compact design. The UV emitters, when combined with Image Spot’s crystal clear optics, vividly energize fluorescent objects or scenery from up to 40 feet (12m) away!

Image Spot UV has an IP65 rating, enabling it for use in both indoor and outdoor environments. Please note that Image Spot UV does not ship with a lens. Choose from the available narrow, medium and wide Lens Optic Accessories when ordering to achieve the imaging or beam spread your project requires.

Powerful 9,000 mW UV Output

The ultraviolet emitters inside the Image Spot UV provide enough UV output to project its beam up to 40 feet (12m). The fixture also features a dichroic glass, UV-Pass filter that eliminates visible light output, while allowing an abundant amount of UV energy to pass.

Accepts Image Spot Gobos

Perfect for projecting textures and patterns onto fluorescent scenery, the Image Spot UV is ready to accept Steel or Black & White Glass Gobos.  Choose any Rosco design from the world’s largest library of standard gobo patterns, or project a custom gobo with a specific image, logo or “hidden message.”

Crystal Clear Optics

Image Spot's engineered optics produce a light beam with the highest uniformity and resolution, which enables the fixture to project even illumination or a crisp gobo image at distances up to 40 feet (12m).

Designed For Indoor And Outdoor Environments

Featuring an IP65 rating, the Image Spot UV allows designers to create fluorescent projection effects for indoor installations such as dark rides, nightclubs and museums, as well as outdoor venues such as haunts and theme park attractions.

Manual or DMX Controls

Control the output of the Image Spot UV using its on-board dimming controls or by connecting the fixture to a DMX control device for remote intensity control via a factory-installed, exterior-rated Cat5 cable.

What’s In The Box:

  • Image Spot UV LED Projector
  • Dichroic Glass UV-Pass Filter (Pre-Installed Inside The Gobo Cassette)
  • Manual
  • Image Spot Welcome Pack


Please note that the Image Spot UV does not ship with a lens. Make sure to choose an Image Spot Lens Optic Accessory when ordering to achieve the beam spread your project requires. Lens options include: 19°, 25° and 30°. Click on the Photometrics tab above or download the Image Spot UV Photometrics Data Sheet for more information.

Input Voltage: 100-240VAC

Power Consumption: 45 Watts at maximum output

Output: 9,000 mW

Peak Wavelength:

  • LED Emitters (without dichroic): 385 nm
  • With included dichroic UV Pass filter: 365 nm


Lumen Maintenance: 20,000 hours at 25°C (LM-79-08)

Power Connection: 6.5 ft (2m) insulated cable, unterminated (connector not included)

Data: DMX512 In/Out via a factory-installed, 2m, exterior-rated Cat5e Cable/Gland

DMX Addressing:  Rosco Programming Software


Dimensions: 7.8in x 4.8in x 6.8in (198mm x 123mm x 172mm) (including yoke)

Weight: 5.5 lbs (2.5 kg)

Operating Temperature: -13° to 104° F (-25° to 40° C)

Humidity: 0 - 95% non-condensing

Housing: Anodized Aluminum Extrusion


  • ETL / UL Standards #62368-1 and #60950-22
  • cETL / CSA C22.2 #62368-1 and #6095-22
  • IP65 Rated (outdoor use)




Image Spot Gobos:

For optimum image quality and performance, use Rosco Image Spot Gobos that feature custom bezels ensuring a secure fit inside the Image Spot UV gobo cassette. (Note: The Image Spot UV ships with a dichroic glass, UV-Pass filter already inserted into the gobo cassette. There is room for one gobo in addition to the filter inside the cassette.)

Standard Gobos
XXXXX-SPOT           Image Spot Standard Gobo, XXXXX = The five digit standard gobo number

Custom Gobos
2507210ISPOT         Image Spot Custom Steel Gobo
260CUSBWOSPO    Image Spot Custom B&W Glass Gobo


Product Number:
296 00002 1657    Image Spot UV - IP65 - DMX - w/o Lens - Black
