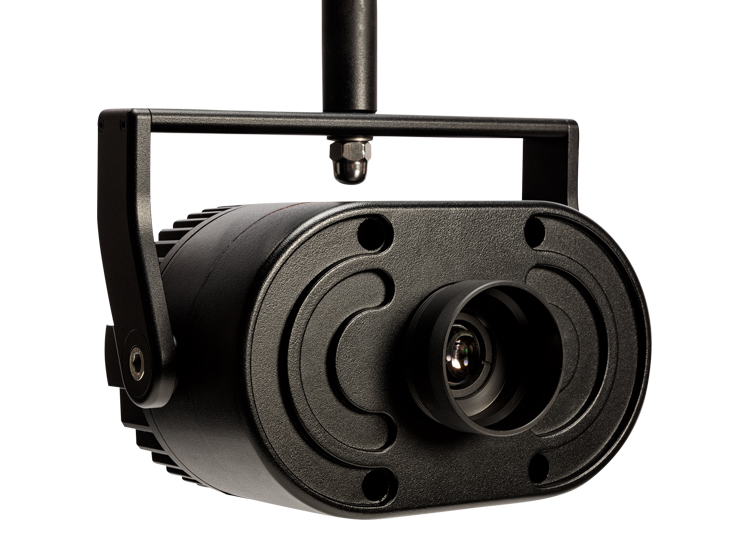

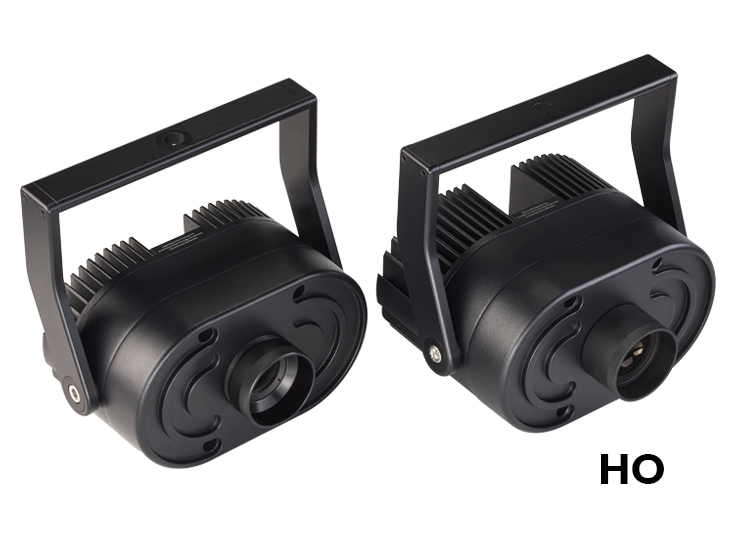

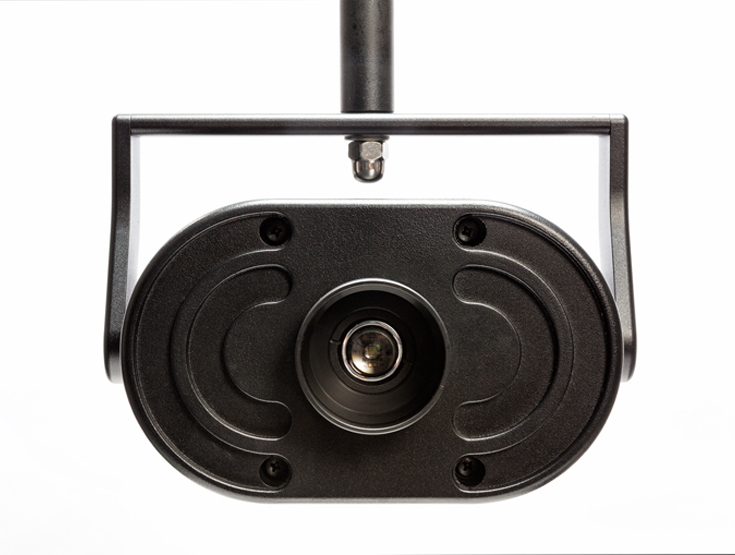

The X-Effects LED and X-Effects LED HO UV Projectors create dynamic lighting effects in a wide range of indoor or outdoor applications. Effects are created by projecting UV light through the edges of two rotating pieces of Effects Glass that are mounted off-center of the optical path. This results in a projection with linear motion for creating stunning black light and vivid 3D lighting effects.

Please note that the X-Effects LED Projectors do not ship with a lens. Choose from the available four lens accessories when ordering to achieve the beam spread your project requires.

Designed For Use Indoors Or Outdoors

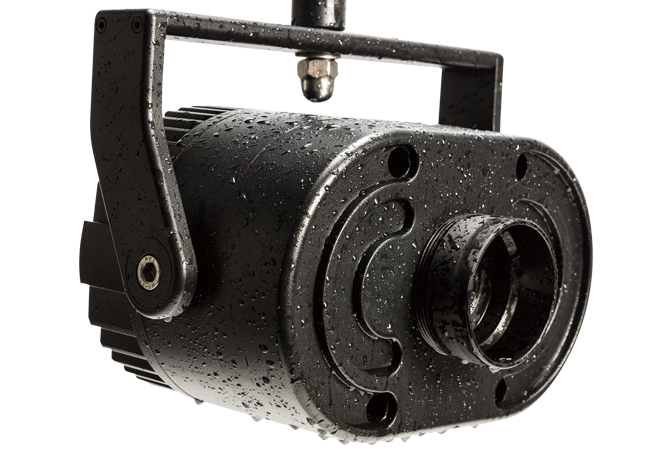

The X-Effects LED Projectors are IP65-rated for indoor or outdoor use, offering the versatility to create dynamic lighting effects anywhere they are required.

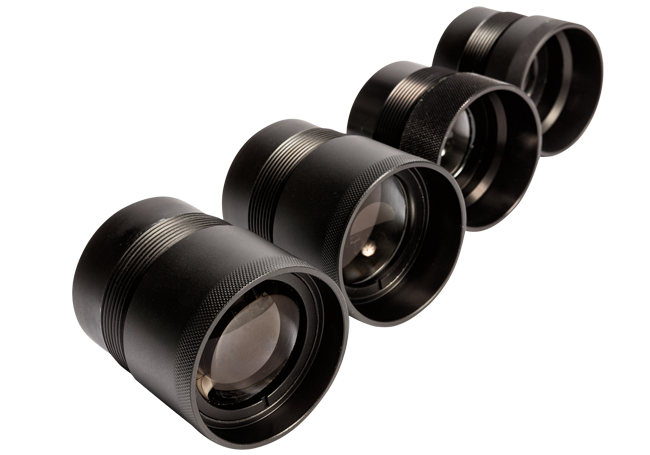

Four Available Lens Options

Whether you need to shine your effect on a building across the street or on a wall five feet away, the X-Effects LED Projectors have the proper lenses to meet every projection need.

Customizable Effects Engines

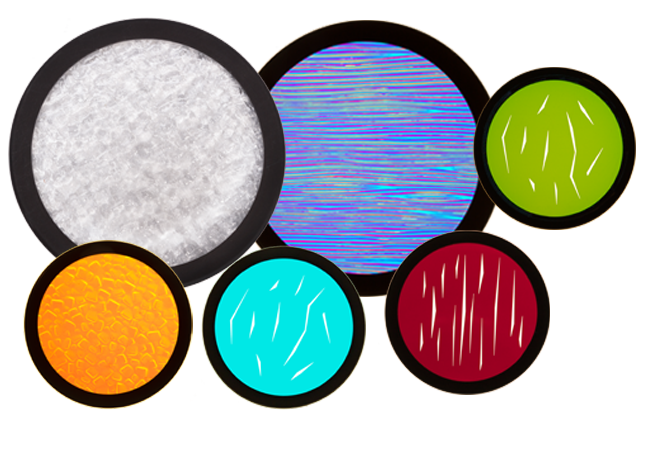

The X-Effects LED UV Projectors can achieve a variety of different black light effects by changing gobos or adding color into either the Static Gobo/Filter position or into the two rotating Dynamic Effects Glass positions.

Quiet Operation

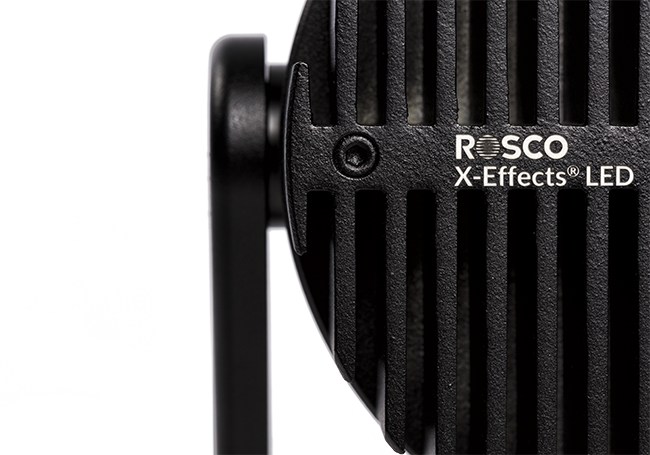

Lighting effects should be seen, not heard. The X-Effects LED Projectors are passively cooled enabling them to operate without noisy fans.

Manual & DMX Controls - RDM Compatible

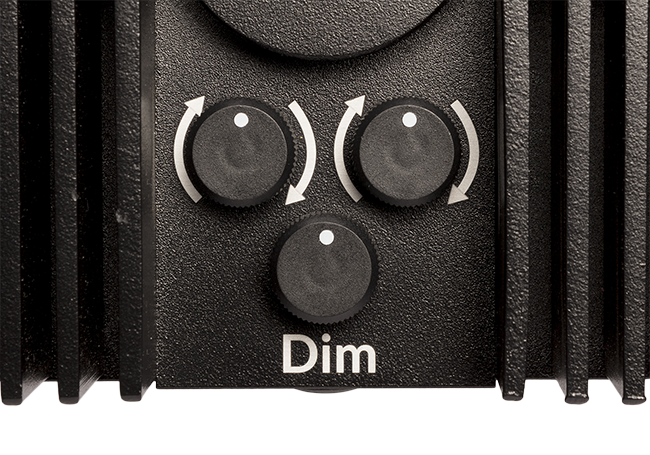

The X-Effects LED Projectors feature on-board controls of the fixture’s output, as well as the speed and direction of both Effects Glass Gobos. The fixtures can also be controlled via DMX and are RDM compatible.

What’s In The Box:

X-Effects LED Projector - UV
Power/Data Cable with UTL Connector
(2) Dynamic X-Effects Glass
Quick Start Guide

Please note that the X-Effects LED Projector does not ship with a lens. Choose from the available four lens accessories when ordering to achieve the beam spread your project requires. Lens options include: 19°, 30°, 50° and 70°. See photometrics tab for more information.

Input Voltage: 100-240VAC

Power Consumption: 45 and 80 (HO) Watts at maximum output

Source Output: 17,000mW and 33,600mW (HO)

Color Temperature: UV 365nm

Lumen Maintenance: 50,000 hours at 45C (LM-79-08)

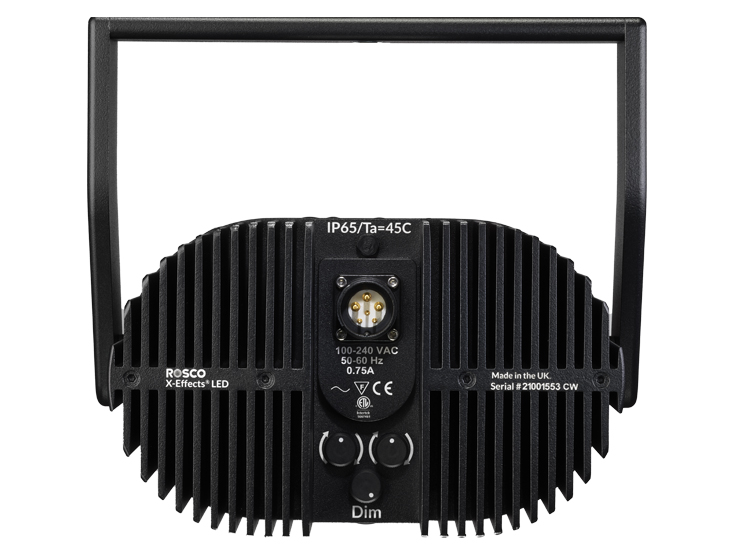

Power/Data Connection: UTL Connector on rear panel

Insulated IP65 hybrid power/data cable with UTL connector

6ft/2m user end unterminated cable comes standard

Custom cable options available

DMX512 In/Out via wired hybrid cable

RDM compatible

Onboard dimming via potentiometers

Number of DMX Channels: 5

1 - Gobo #1 Direction
2 - Gobo #1 Speed
3 - Gobo #2 Direction
4 - Gobo #3 Speed
5 - Intensity (LED Dimming)

See user guide for wiring diagram and data/control information

Operating Temp.: -13° to 113° F (-20° to 45° C)

IP Rating: IP65

Dimensions: 5.5”L x 10.1”W x 5.8”H (14.2cm x 25.8cm x 14.8cm)

5.5”L x 10.1”W x 6.5”H – HO (14.2cm x 25.8cm x 16.7cm - HO)

Weight: 9 lbs (4.1 kg)

13 lbs (5.8kg) HO

Housing: Powder Coated Aluminum

Approvals:

ETL / UL Standards #1573 and # 8750

cETL / CSA C22.2 #166

EN 62471 Standard - UV Risk Group 3

etl ce

X-Effects LED UV Projectors:
297100010UV1 X-Effects LED HO Projector, UV, IP65, Black
297000010UV1 X-Effects LED Projector, UV, IP65, Black

Lenses for X-Effects LED Projectors:
297000000019     X-Effects LED Projector 19-Degree Lens, Black
297000000030    X-Effects LED Projector 30-Degree Lens, Black
297000000050    X-Effects LED Projector 50-Degree Lens, Black
297000000070    X-Effects LED Projector 70-Degree Lens, Black
297000000S19     X-Effects LED Projector 19-Degree Lens, Silver
297000000S30    X-Effects LED Projector 30-Degree Lens, Silver
297000000S50    X-Effects LED Projector 50-Degree Lens, Silver
297000000S70    X-Effects LED Projector 70-Degree Lens, Silver

Please see the X-Effects LED UV Data Sheet for complete order tree.
